KL-1864 Big Batch Electric Powder Coating Oven for Wheels
- Technical Data
- Video
| Model | KL-1864 |
| Working dimensions | Width1600 x Height1800 x Depth1400 mm |
| Overall dimensions | Width1900 x Height2200 x Depth1700 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flow vertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
Related Products
KL-1864 Wheel Powder Coating Oven — large-capacity ventilated oven for big wheels and high output
The KL-1864 is the largest oven in our wheel powder coating range, built for shops and factories curing big wheels or high volumes. With an 18 kW heating system and a spacious 1600 × 1800 × 1400 mm work chamber, it delivers the power and room that heavy-duty curing demands — and forced vertical airflow keeps the heat even across every part of the load.
Temperature holds steady within ±3–5 °C up to 250 °C, with a 15–30 minute warm-up. A wheeled trolley makes loading heavy wheels easier, and voltage can be customized (380V/220V) to match your facility. Every KL-1864 comes with a 12-month warranty.
- Large 1600 × 1800 × 1400 mm work chamber for big wheels and batches
- Powerful 18 kW heating for high-output curing
- Forced vertical airflow with ±3–5 °C temperature stability
- Loading trolley and customizable voltage; 12-month warranty
At a glance
| Working chamber (W×H×D) | 1600 × 1800 × 1400 mm |
| Power | 18 kW electric |
| Max temperature | 250 °C |
| Temperature stability | < ± 3–5 °C |
| Warm-up time | 15–30 min (to 180 °C) |
| Warranty | 12 months |

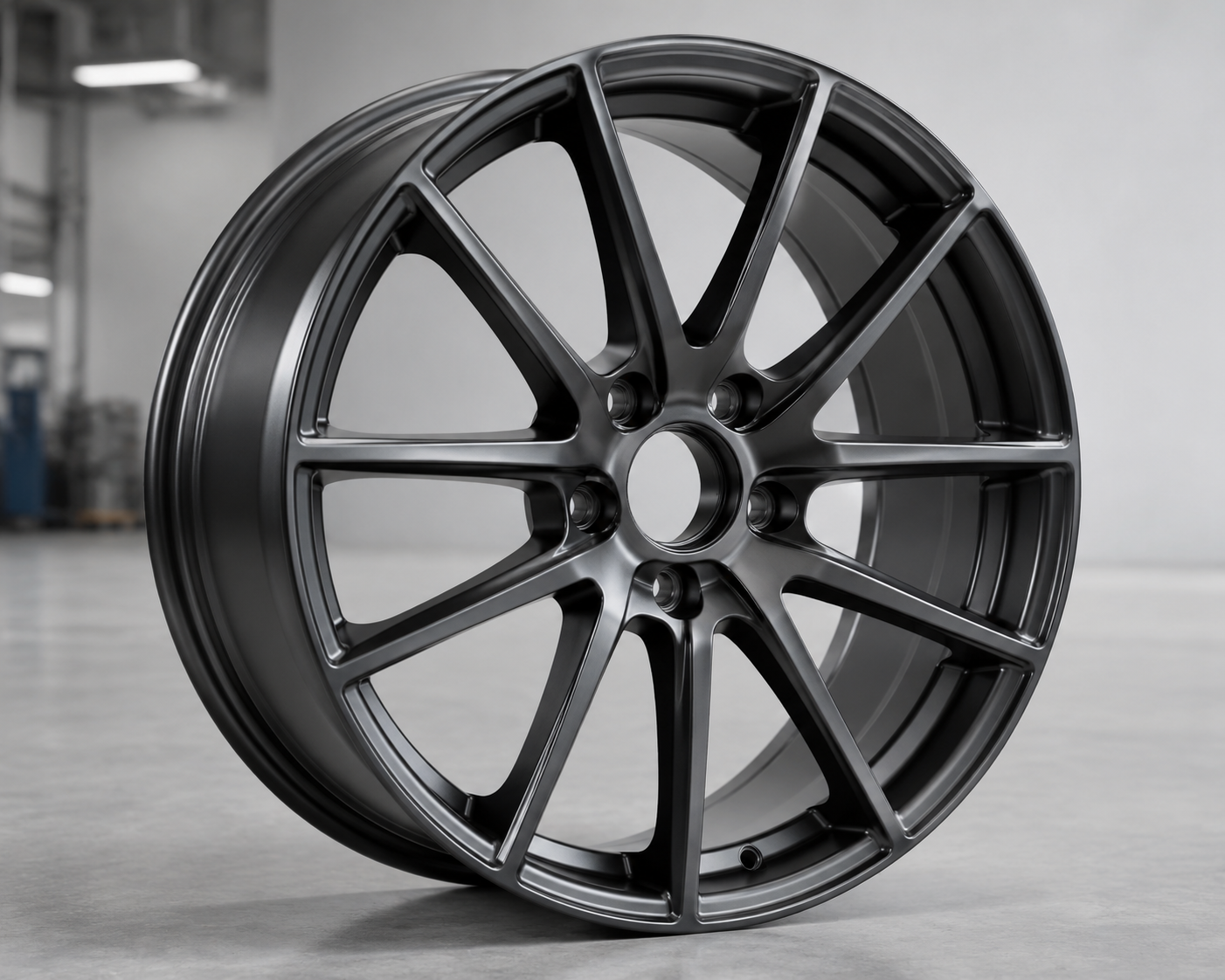

The finish it produces
Built for large-capacity curing
Bigger wheels and higher volumes need both room and power. The KL-1864 combines a large chamber with strong, evenly-distributed heat so large loads cure uniformly.
| Feature | Benefit |
|---|---|
| 18 kW heating power | Strong heat that reaches and recovers temperature quickly on large loads |
| 1600×1800×1400 mm chamber | Room for big wheels or several parts per batch |
| Forced vertical airflow | Even heat distribution for a uniform cure, ±3–5 °C stability |
| Loading trolley | Makes loading and unloading heavy wheels safer and faster |
Recommended curing temperature and time depend on the powder you use — always follow the powder manufacturer’s data sheet.
Who the KL-1864 is built for
High-output refinishing factories — the large chamber and 18 kW power keep curing capacity ahead of demand, even with big wheels.
Shops handling oversized wheels — the 1800 mm chamber height takes large-diameter rims and truck wheels that won’t fit smaller ovens.
Businesses building a full wheel line — pairs with polishers, CNC lathes and sand blasting machines for a complete refinishing workflow.
KL-1864 full specifications
| Model | KL-1864 |
| Working dimensions | Width 1600 × Height 1800 × Depth 1400 mm |
| Overall dimensions | Width 1900 × Height 2200 × Depth 1700 mm |
| Power supply (electric) | 18 kW |
| Voltage | 380V / 220V (custom voltage available) |
| Frequency | 50–60 Hz |
| Warm-up time | 15–30 min (180 °C) |
| Temperature stability | < ± 3–5 °C |
| Temperature max | 250 °C |
| Ventilation performance | 805–1677 m³/h |
| Motor power | 0.75 kW |
| Circulation / airflow | Vertical, variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
Specifications subject to change without notice. Contact our engineering team for detailed drawings and custom requirements.
Compare the wheel powder coating oven range
Choosing between our wheel ovens? Here’s how the KL-1864 compares. Our team can recommend the right size for your throughput and shop space.
| Model | KL-1864 | KX-202 | KL-1688 | KX-102 |
|---|---|---|---|---|
| Power | 18 kW | 12 kW | 6 kW | 4 kW |
| Chamber height | 1800 mm | 1680 mm | 1600 mm | 800 mm |
| Airflow | Forced vertical | Standard | Forced vertical | Standard |
| Best for | Big wheels, high output | Higher volume | Even curing | Small shops |
* Confirm final specifications with our engineering team before ordering.
Why Inovatec — a finishing partner, not just a machine seller
| 15+ Years in finishing equipment A full range of wheel refinishing machines and media. | 24h Reply on inquiries Technical questions answered fast so your buying decision isn’t stuck waiting. | Full Wheel line supplier Ovens, polishers, CNC lathes, sand blasting — source your whole line from one maker. |
| 60+ Countries served Export packing and documentation handled as standard. | CE Compliant build Machines built to meet export safety requirements. | 12mo Warranty Backed by a 12-month warranty and setup support. |
Download the specification sheet
Full specs and the wheel oven range in a one-page datasheet you can share with your team.
↓ Download KL-1864 Spec Sheet (PDF)
| Setting up a wheel refinishing line? The KL-1864 pairs with our wheel polishers, CNC lathes and sand blasting machines. Tell us your space and volume — we’ll quote the right oven and a factory-direct price. Reply within 24 hours. |
