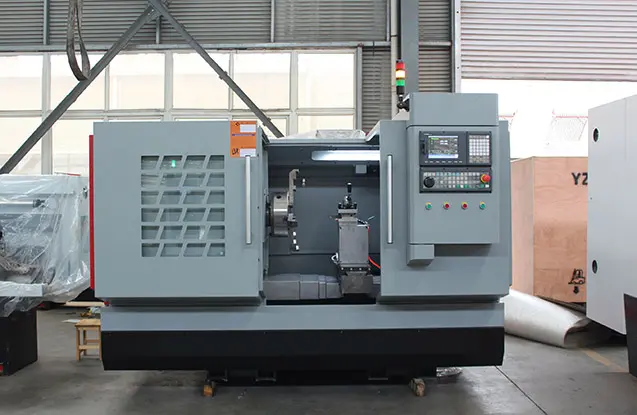

WRC28 Wheel CNC Lathe Machine – Professional Wheel Repair Machine
- Technical Data
- Standard Configuration
- Video
| Model | WRC28 |
| Max. swing over bed | Φ770mm (30’) |
| Max. size of alloy wheel | Φ720mm (28’) |
| Adjustable stroke of carrier in X direction | 100mm |
| Cross slide travel | 390mm |
| Width of the rail | 300mm |
| Length of the rail | 1300mm |
| Size of the 3-jaw chuck | 12’ |
| Range of spindle speed | 50~2000rpm |
| Spindle speed control | Automatic |
| Spindle bore | Φ82mm |
| Taper of spindle bore | 1:20 (Φ90) |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4 position |
| Min. setting unit of motor | (Z) long 0.001mm (X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min (X) cross 6m/min |
| Motor power | 7.5kw |
| Machine base | Whole cast iron base |
| Machine size (L*W*H) | 2140*1600*1860mm |
| Packing size | 2300*1750*2100mm |
- Diamond tool holder
- Three-jaw manual chuck (one pair of special soft jaws)
- Ruby digital probe
- Taiwan’s new generation CNC system
- Common quick-change tool holder, four-station
- Automatic lubrication system
- Cooling system
- Full protection (safety protection door)
- Common tools and toolboxes
- Dedicated hub curve optimization software
Related Products
WRC28 Wheel CNC Lathe Machine — professional horizontal-spindle CNC lathe for alloy wheel diamond-cut refurbishment
The WRC28 is a horizontal-spindle CNC wheel repair lathe for professional diamond-cut refurbishment of alloy wheels up to 28 inches. Built on a solid cast iron base with a 7.5 kW main motor, it delivers the rigidity and thermal stability that accurate surface machining requires — no flex, no vibration-induced chatter, consistent finish across the full face of the wheel. Automatic spindle speed control adjusts cutting parameters on the fly, reducing cycle time without requiring operator intervention between passes.
The machine ships with a ruby digital probe, Taiwan new-generation CNC system, and dedicated hub curve optimisation software. The 3-jaw manual chuck with special soft jaws (12 inch) centres and clamps alloy wheels securely without marking the barrel. Standard configuration includes diamond tool holder, 4-station quick-change tool post, automatic lubrication, cooling system and full safety protection door — everything needed to run a DC refurbishment operation from day one.
- Whole cast iron base — rigid, stable foundation for consistent cut quality
- 7.5 kW motor with automatic spindle speed control — faster cycle times, less operator adjustment
- Ruby digital probe + hub curve optimisation software — accurate wheel profiling without manual measurement
- 28″ maximum wheel size — covers the full mainstream passenger car and SUV fitment range
- Full protection safety door — operator safety and coolant containment
At a glance
| Model | WRC28 |
| Max. wheel size | 28″ (720 mm / Φ720 mm) |
| Main motor power | 7.5 kW |
| Spindle speed range | 50–2000 rpm (automatic control) |
| Chuck size | 12″ (3-jaw, with special soft jaws) |
| Machine base | Whole cast iron base |
| Machine size (L×W×H) | 2140 × 1600 × 1860 mm |
How the WRC28 machines a wheel
The wheel is mounted on the horizontal spindle and clamped with the 3-jaw chuck using soft jaws matched to the wheel bore. The ruby probe measures the wheel surface profile and feeds the data to the hub curve optimisation software. Roughing and finishing passes run automatically; the cooling system manages heat throughout.
| Step | What happens |
|---|---|
| 1. Mount | Wheel clamped on 12″ 3-jaw chuck with soft jaws; centred and secured |
| 2. Probe | Ruby digital probe measures the wheel surface; data loaded into hub optimisation software |
| 3. Rough cut | Carbide insert removes damaged surface, corrosion and old lacquer; cooling system active |
| 4. Diamond finish | Diamond tool holder makes the final pass; bright-machined DC surface produced |
| 5. Unload & lacquer | Wheel moves to spray booth for clear lacquer protection (separate equipment) |
Who the WRC28 is built for
Professional wheel refurbishment workshops processing mainstream vehicle wheels — the WRC28 covers 14–28″ alloy wheels: the full range of passenger car, crossover and standard SUV fitments that make up the bulk of daily refurbishment volume in most markets. The automatic spindle speed control and hub optimisation software keep cycle times short without constant operator adjustment.
Shops looking for a cost-effective entry point into CNC diamond-cut — the WRC28 delivers professional DC results with a lower initial investment than the vertical WRC28VM, while sharing the same 7.5 kW motor class and cast iron base construction. It is suitable as a first CNC lathe for a growing rim repair business.
Automotive bodyshops and used-car preparation centres — the automatic spindle control and simple operation (learnable within an hour, per machine documentation) allow non-specialist technicians to produce consistent DC results as part of a broader vehicle turnaround workflow.
WRC28 vs WRC28VM — which machine fits your work?
| WRC28 | WRC28VM | |
|---|---|---|
| Spindle orientation | Horizontal | Vertical |
| Max. wheel size | 28″ (720 mm) | 30″ (780 mm) |
| Spindle speed | 50–2000 rpm | 50–1500 rpm |
| Motor power | 7.5 kW | 7.5 kW |
| Probing system | Ruby digital probe | TP300 Pioneer Sensing Probe |
| CNC controller | Taiwan new-generation CNC system | Syntec brand |
| Best for | Mainstream 14–28″ wheels, cost-effective DC | Premium / large-diameter / complex profiles, minimal programming |
WRC28 full specifications
| Model | WRC28 |
| Max. swing over bed | Φ770 mm (30″) |
| Max. size of alloy wheel | Φ720 mm (28″) |
| Adjustable stroke of carrier (X) | 100 mm |
| Cross slide travel | 390 mm |
| Width of rail | 300 mm |
| Length of rail | 1300 mm |
| 3-jaw chuck size | 12″ |
| Spindle speed range | 50–2000 rpm (automatic control) |
| Spindle bore | Φ82 mm |
| Max. tool post size | 25 × 25 mm |
| Tool carrier stations | 4 position |
| Min. setting unit (Z long / X cross) | 0.001 mm / 0.001 mm |
| Moving speed of post (Z / X) | 8 m/min / 6 m/min |
| Motor power | 7.5 kW |
| Machine base | Whole cast iron base |
| Machine size (L×W×H) | 2140 × 1600 × 1860 mm |
| Packing size | 2300 × 1750 × 2100 mm |
Specifications subject to change without notice. Customisation available on request.
Why Inovatec — a finishing partner, not just a machine seller
| 15+ Years in finishing equipment A full range of wheel repair machines and finishing systems. | 24h Reply on inquiries Technical questions answered fast so your buying decision isn’t stuck waiting. | Cast iron Whole base construction One-piece cast iron base for long-term dimensional stability and vibration damping. |
| 60+ Countries served Export packing and documentation handled as standard. | CE Compliant build Machines built to meet export safety requirements. | Full Wheel line supplier Lathes, blasters, booths, ovens — source your complete refurbishment line from one maker. |
Download the specification sheet
Full WRC28 specs in a one-page datasheet you can share with your team or use in purchasing approval.
↓ Download WRC28 Spec Sheet (PDF)

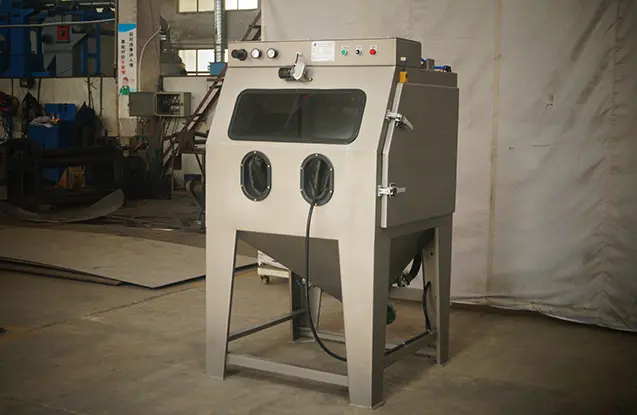

| Setting up a wheel diamond-cut refurbishment station? We supply the complete line — CNC lathe, wet blaster, powder coating booth and oven — matched to your space and volume. Factory-direct price, reply within 24 hours. |
