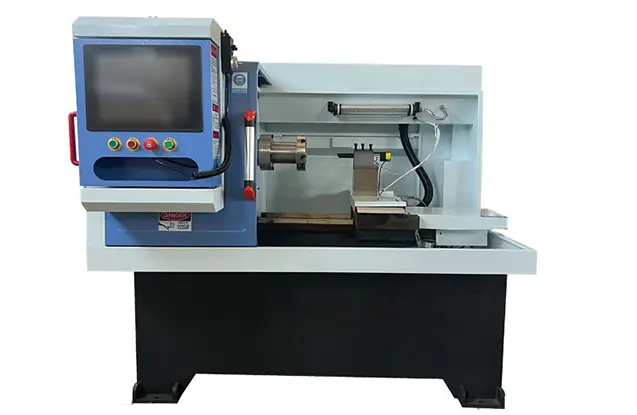

Economic YN-26 Professional Wheel Rim CNC Lathe Machine
- Technical Data
- Standard Configuration
| name | Unit | NY-26 | NY-26A |
| Large machining hub diameter | Inch | 25 | 25 |
| X-axis maximum travel | mm | 350 | 350 |
| main motor power | kw | 6 | 6 |
| Rail width | mm | 260 | 260 |
| Wheel measurement direction | X·Y | X·Y | |
| Measuring tools | laser | laser | |
| Measurement methods | laser scanning | Laser automatic scanning | |
| Program optimization | Fully automatic and manual | Fully automatic and manual | |
| Number of wheel machining programs stored | Unlimited | Unlimited | |
| CNC system | Independent research and development | Independent research and development | |
| Wheel processing | surface | surface | |
| Machine tool machining accuracy | IT6~IT7 | IT6~IT7 | |
| surface finish | um | Ra0.8~1.6 | Ra0.8~1.6 |
| Main drive form | Stepless speed regulation | Stepless speed regulation | |
| Spindle speed range | rpm | Factory setting 50-1000 | Factory setting 50-1000 |
| fast movement speed | mm/min | X:5000 Z:8000 | X:5000 Z:8000 |
| Repeatability | mm | X:0.01 Z:0.015 | X:0.01 Z:0.015 |
| Tool holder form | Knife row, manual knife holder, | Arrangement of knives, automatic knife holder, | |
| Turning tool holder size | mm | 25*25*2 | 25*25*3 |
| Machine tool dimensions (LxWxH) | mm | 1700x1450x1700 | 1800x1300x1750 |
| Machine net weight | kg | 1000 | 1200 |
1: 15-inch large LCD display (touchable), separate operation interface, user-friendly design.
2: The automatic wheel hub drawing machine can realize the laser scanning data collection of the wheel surface curve, which can be completed in more than ten seconds.
3: The wire drawing machine is fully automatically optimized according to the actual curve of the wheel hub surface, and the automatic production process is performing precise repair and precision machining.
4: Safe speed and high brightness: The default speed is 350 rpm (the speed can be adjusted), and high brightness is achieved at low speed.
5: It only takes 30 minutes for zero-based personnel to fully master it, and the training time is short, and they can start work in one day.
Related Products
Economic YN-26 Wheel CNC Lathe Machine — affordable entry-level CNC lathe for alloy wheel diamond-cut refurbishment
The YN-26 is an economic CNC wheel lathe designed for alloy wheel refurbishment up to 25 inches. Where the WRC28 and WRC28VM are built for high-volume or premium applications, the YN-26 is the right machine for workshops adding diamond-cut capability for the first time, or for businesses that need an affordable, compact and easy-to-operate solution without sacrificing the core DC result.
The machine uses laser scanning to map the wheel surface automatically — the complete scan takes more than ten seconds — and the self-developed CNC system generates and optimises the cutting program from the scan data without manual input. Default spindle speed is 350 rpm (adjustable up to 1000 rpm), the complete lathe process can be finished in under ten minutes, and the machine is rated ready to operate within 30 minutes of first-time training. At 1000–1200 kg, it occupies a small floor area and can be installed in workshops where the larger WRC series machines would not fit.
- Laser scanning probe — full wheel surface mapped automatically in seconds
- No-programming operation — CNC system generates and optimises the cutting path from scan data
- 10-minute lathe cycle — fast throughput for high-volume or time-sensitive operations
- 15″ touchscreen LCD — simple, operator-friendly interface; 30-minute learning curve
- Compact footprint — 1700×1450 mm (NY-26), fits tight workshop spaces
At a glance
| Models | NY-26 / NY-26A |
| Max. wheel diameter | 25″ |
| Main motor power | 6 kW |
| Spindle speed | 50–1000 rpm (default 350 rpm) |
| Surface measurement | Laser scanning (X & Y axis) |
| Machining accuracy | IT6–IT7 |
| Surface finish | Ra 0.8–1.6 µm |

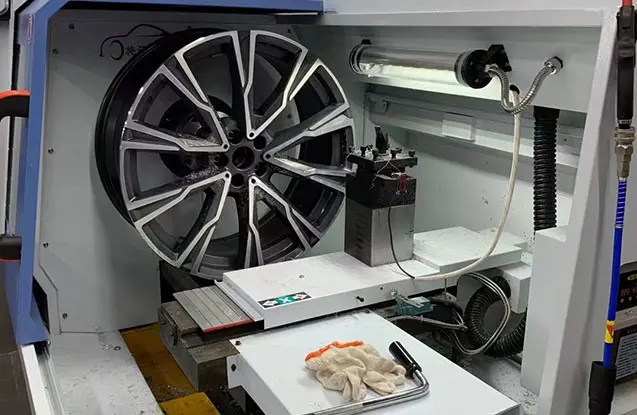

How the YN-26 machines a wheel
The wheel is mounted on the chuck. The laser scanning system maps the wheel surface in X and Y axes — completed in seconds. The on-board CNC system takes the scan data, generates a fully optimised cutting program automatically, and executes the repair. No operator programming is needed at any stage.
| Step | What happens |
|---|---|
| 1. Mount | Wheel clamped on chuck and centred |
| 2. Laser scan | Laser probe scans the wheel surface in X and Y axes; data collected in seconds |
| 3. Auto program | CNC system generates fully optimised cutting path from scan data — no operator input required |
| 4. Machine | Cutting program executes; full lathe process completes in under 10 minutes |
| 5. Lacquer | Wheel moves to spray booth for clear lacquer protection (separate equipment) |
Who the YN-26 is built for
Workshops adding diamond-cut for the first time — the 30-minute operator learning curve, no-programming operation and 15″ touchscreen interface make the YN-26 the lowest-barrier CNC wheel lathe in the Inovatec range. A technician with no prior CNC experience can be producing quality DC results on the same day the machine is commissioned.
Shops with limited floor space — at 1700×1450 mm (NY-26) the YN-26 occupies significantly less space than the WRC28 (2140×1600 mm) or WRC28VM (1500×1820 mm), making it practical for compact workshops or mobile refurbishment units.
Cost-sensitive businesses prioritising payback speed — the lower purchase price, combined with the 10-minute cycle time and minimal operator training cost, makes the YN-26 the fastest-payback entry point into DC wheel refurbishment in the Inovatec range.
NY-26 vs NY-26A — which variant fits your work?
| NY-26 | NY-26A | |
|---|---|---|
| Tool holder | Manual knife holder | Automatic knife holder |
| Tool holder size | 25 × 25 × 2 mm | 25 × 25 × 3 mm |
| Machine size (L×W×H) | 1700 × 1450 × 1700 mm | 1800 × 1300 × 1750 mm |
| Net weight | 1000 kg | 1200 kg |
| Best for | Lower cost, manual tool change, compact install | Higher throughput, automatic tool indexing |
YN-26 full specifications
| Specification | NY-26 | NY-26A |
|---|---|---|
| Max. machining hub diameter | 25″ | 25″ |
| X-axis maximum travel | 350 mm | 350 mm |
| Main motor power | 6 kW | 6 kW |
| Rail width | 260 mm | 260 mm |
| Measurement method | Laser scanning | Laser automatic scanning |
| Program optimisation | Fully automatic and manual | Fully automatic and manual |
| Machining accuracy | IT6–IT7 | IT6–IT7 |
| Surface finish | Ra 0.8–1.6 µm | Ra 0.8–1.6 µm |
| Spindle speed range | 50–1000 rpm | 50–1000 rpm |
| Fast movement (X / Z) | 5000 / 8000 mm/min | 5000 / 8000 mm/min |
| Repeatability (X / Z) | 0.01 / 0.015 mm | 0.01 / 0.015 mm |
| Tool holder | Manual (25×25×2 mm) | Automatic (25×25×3 mm) |
| Machine size (L×W×H) | 1700 × 1450 × 1700 mm | 1800 × 1300 × 1750 mm |
| Net weight | 1000 kg | 1200 kg |
Specifications subject to change without notice. Contact us to confirm current configuration and availability.
Why Inovatec — a finishing partner, not just a machine seller
| 15+ Years in finishing equipment A full range of wheel repair machines and finishing systems. | 24h Reply on inquiries Technical questions answered fast so your buying decision isn’t stuck waiting. | 30 min Operator ready-to-run No-programming design means staff with no CNC background can operate from day one. |
| 60+ Countries served Export packing and documentation handled as standard. | CE Compliant build Machines built to meet export safety requirements. | Full Wheel line supplier Lathes, blasters, booths, ovens — source your complete refurbishment line from one maker. |
Download the specification sheet
Full YN-26 specs for both variants in a one-page datasheet you can share with your team or use in purchasing approval.
