The economic vibratory tumbler is perfect for small workspaces and workshops. It cleans parts, removes rust, polishes, deburrs, etc. We also use this for Other small workshop uses / hobby uses. Compared with manual deburring, Economic Vibratory Tumbler saves up to 70 % labor cost and triples throughput in 24 hours operation.
Inovatec Machinery · Vibratory Finishing
Inovatec’s economic vibratory tumbler give smooth surface finishes, fast deburring, and reliable results for every batch. Below is real performance data and before-and-after comparisons from our industrial customers. Ideal for small factories seeking efficient deburring and polishing without high-end investment.
Before AfterProcess Specs
Parts Material | Processing time (min) | Media Type | Media Wear Rate | Ra before | Ra after | Material Removal | Consistency | |
Stainless steel (304) | 120 minutes | GC ceramic media ACT 20X20mm (3/4 inch) | 0.5% per hour | 5 | 0.4 | < 0.3% | ±1% Surface Uniformity |
Consistent Results: The Economic Vibratory Tumbler delivers uniform surface finish quality from batch to batch, providing stable and reliable results for daily production.
Low Damage Rate: With controlled vibration and properly matched media, the Economic Vibratory Tumbler reduces part-to-part contact and helps protect small or delicate components.
High Repeatability: Digital controls and simple program settings help the Economic Vibratory Tumbler maintain cycle-to-cycle consistency, typically within ±1% under identical processing conditions.
Real Industrial Testing: The Economic Vibratory Tumbler is proven through 1,000+ finishing tests across different metals, part sizes, and geometries.
Process Tracking: Each Economic Vibratory Tumbler can record cycle time, media type, and vibration parameters for easier quality control and repeatable finishing results.

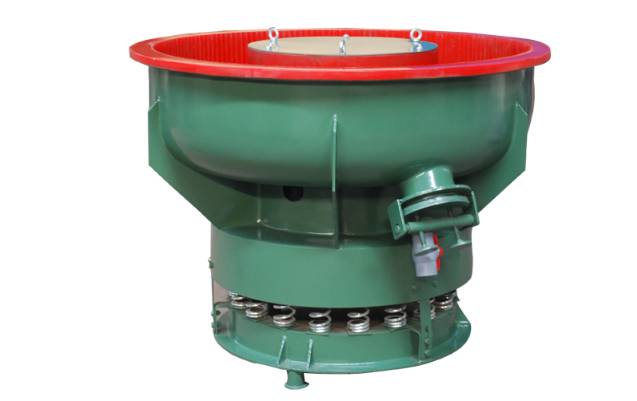

Detailed specifications for our ZHM series economic vibratory tumbler. Compare models and download comprehensive technical documentation.
| Model | Capacity | Motor Power | Speed | Amplitude | PU lining | Weight | Dimension |
| ZHM | (L) | (kw) | RPM | (mm) | (mm) | (kg) | (mm) |
| ZHM-40A | 40 | 0.55 | 1450 | 0.8-3 | 6-12mm | 65 | 600x500x600 |
| ZHM-60A | 60 | 0.75-1.1 | 1450 | 0.8-3 | 6-12mm | 100 | 700x640x700 |
| ZHM-80A | 80 | 1.1 | 1450 | 0.8-3 | 6-12mm | 110 | 840x640x740 |
| ZHM-95A | 95 | 1.1 | 1450 | 0.8-3 | 6-12mm | 125 | 860x800x750 |
| ZHM-135A | 135 | 2.2-3.0 | 1450 | 0.8-4 | 6-15mm | 350 | 1150x1060x900 |
| ZHM-150A | 150 | 2.2-3.0 | 1450 | 0.8-4 | 6-15mm | 380 | 1150x1050x900 |
| ZHM-150AB | 150 | 2.2-3.0 | 1450 | 0.8-4 | 6-15mm | 380 | 1150x1100x900 |
| ZHM-250A | 250 | 3.7 | 1450 | 0.8-5 | 6-20mm | 550 | 1250x1250x1000 |
| ZHM-250AB | 250 | 3.7 | 1450 | 0.8-5 | 6-20mm | 550 | 1250x1250x1000 |
| ZHM-350B | 350 | 5.5 | 1450 | 0.8-6 | 6-20mm | 800 | 1500x1350x1050 |
| ZHM-350A | 350 | 5.5 | 1450 | 0.8-6 | 6-20mm | 800 | 1450x1350x1050 |
| ZHM-350AB | 350 | 5.5 | 1450 | 0.8-6 | 6-20mm | 800 | 1450x1350x1050 |
| ZHM-450A | 450 | 5.5 | 1450 | 0.8-6 | 6-20mm | 1000 | 1550x1430x1050 |
| ZHM-450AB | 450 | 5.5 | 1450 | 0.8-6 | 6-20mm | 1000 | 1600x1430x1050 |

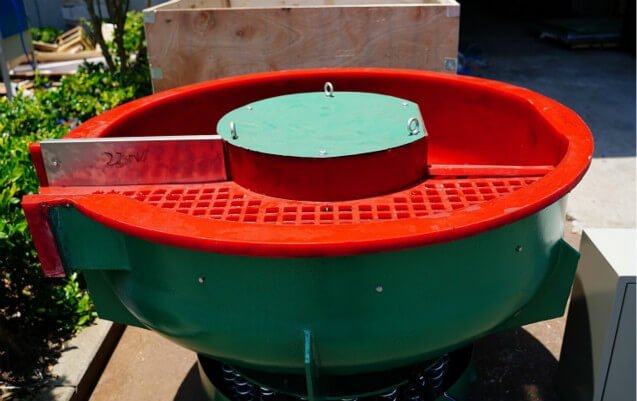

The ZHM series economic vibratory tumbler uses the same operating principle as the higher-end VBS and VB series machines — vibration-driven toroidal media flow for deburring, edge rounding and surface smoothing — at a lower initial cost by using a simpler motor and control system. The three design elements below explain the practical differences from the full VBS/VB range.
The ZHM series uses a direct-drive vibration motor running at a fixed 1450 rpm — simpler and more reliable than the VFD-controlled motors in higher-end models. Without a variable frequency drive, the amplitude range is narrower (0.8–6 mm depending on model), set by adjusting the imbalance weights rather than motor speed. For small factories processing standard metal and plastic parts with consistent part geometry, this is sufficient. The motor comes pre-mounted and tested; no commissioning is required.

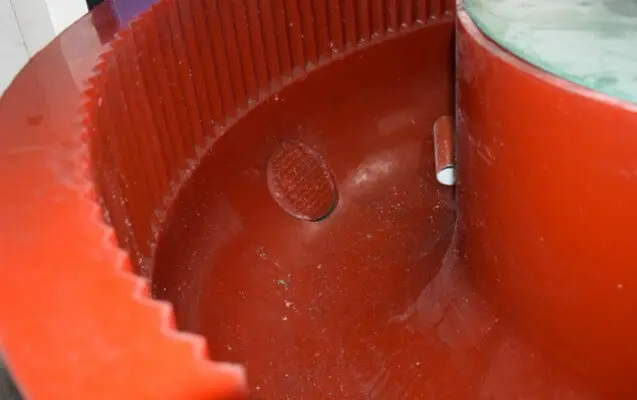

The ZHM bowl is PU-lined throughout, with lining thickness ranging from 6 mm on the smaller models (ZHM-40A to ZHM-95A) to 20 mm on the larger models (ZHM-250A to ZHM-450AB). The lining protects the bowl from media abrasion and reduces transmitted noise. The lining is replaceable when worn — only the lining needs to be replaced, not the bowl body.
The ZHM bowl is PU-lined throughout, with lining thickness ranging from 6 mm on the smaller models (ZHM-40A to ZHM-95A) to 20 mm on the larger models (ZHM-250A to ZHM-450AB). The lining protects the bowl from media abrasion and reduces transmitted noise. The lining is replaceable when worn — only the lining needs to be replaced, not the bowl body.
The ZHM economic vibratory tumbler is the entry-level model in the Inovatec vibratory finishing range. It uses the same bowl-vibration finishing principle as the full VBS and VB series machines, delivering effective deburring, edge rounding, surface smoothing and cleaning for standard metal and plastic parts. The difference from higher-end models is in the motor and control system: the ZHM uses a fixed-speed direct-drive motor instead of a VFD-controlled motor, which lowers cost and simplifies operation at the expense of amplitude adjustment flexibility.
For small factories processing parts with consistent geometry and standard deburring or pre-plating requirements, the ZHM provides reliable batch finishing results at lower capital cost. If your process requires precise amplitude control for different part materials, or continuous multi-shift production with heavy loads, the VBS(A) or VBS(B) series is more appropriate.
Watch our Surface finishing process in action. Learn more about our Surface finishing process technology.
Our mass finishing machine and tumbling media serve diverse industries with specialized finishing solutions for various materials and part types.
Engine components, transmission parts, brake systems
Turbine blades, landing gear, structural components
Fasteners, connectors, precision tools
Post-processing, surface refinement, finishing
Inovatec Machinery stands out as a trusted partner in surface finishing solutions, offering unmatched quality, innovation, and customer support.
Since 2003, we've been at the forefront of surface finishing technology, continuously innovating and improving our solutions based on real-world manufacturing needs.
We understand that every application is unique. Our engineering team works closely with you to design and configure machines that perfectly match your requirements.
With partners and service centers worldwide, we provide localized support and rapid response times regardless of your location.
We value your time. Our technical team responds to inquiries within 24 hours, ensuring you get the answers and support you need quickly.
Benefit from our expertise at no cost. We offer complimentary technical consultations to help you optimize your finishing processes and select the right equipment.
Over 500 satisfied customers across 50+ countries trust Inovatec for their surface finishing needs, with a 99% customer satisfaction rate.
Explore real applications by industry and scenario, with Before/After, sub‑categories and resources to help you quickly find what you need.
Jewelry | Precious Metals | Jewelry Polishing
Precision polishing, deburring and mirror finishing for gold, silver, copper and titanium jewelry—balancing premium surface quality with throughput.
Burrs on edges, surface scratches and oxidation spots reduce luster and wearing comfort.
Noticeably improved mirror gloss with rounded edges and better wearing comfort.
Additive Manufacturing | SLA/SLS/FDM
Removes layer lines, densifies surfaces and unifies appearance for 3D‑printed parts across materials and processes.
Pronounced layer lines, support marks and rough surface affect assembly and appearance.
Smooth, refined surface ready for painting/electroplating; presentation‑grade look.
Sheet Metal | Laser Cutting | Edge Optimization
Removes dross/burrs and adds edge radiusing on laser‑cut parts to improve safety and assembly quality.
Sharp, burred edges can cause cuts and hinder coating adhesion.
Consistent rounded edges and clean surfaces for better paint/e‑coat adhesion.
Consumer Electronics | Small Appliances | Exterior Parts
Delivers consistent texture and feel for high‑volume consumer products, improving brand perception and yields.
Uneven brushing, micro‑burrs and harsh feel affect assembly and user experience.
Uniform texture, smooth edges and refined touch; markedly better consistency.
Stone | Gemstone | Tumbling
Rounds edges and enhances gloss on natural/synthetic stones for jewelry and decorative crafts.
Sharp edges, rough surfaces and uneven color/reflection.
Rounded edges and even polish; improved visual appeal.
Automotive | Engine/Drivetrain | High‑volume Consistency
Deburring, edge radiusing and surface consistency for automotive parts to meet stringent standards.
Tool marks and residual burrs with sharp edges reduce fatigue strength and hinder assembly.
Stable edge radii and compliant roughness with high repeatability.
Defense | High Reliability | Process Consistency
High‑reliability, consistent surface finishing across metals and composites.
Sharp edges, stress concentrations and surface defects impact durability and safety.
Consistent chamfers and stable surface quality; coating/assembly‑ready.
Aluminum Profiles | Die‑cast Parts | High‑volume Finishing
Efficient, consistent finishing for aluminum parts; ideal for pre‑anodizing treatment and brushed/polished appearance.
Gate/flash marks and dull surfaces; notable batch variation.
Flash removed with refined texture and higher brightness; improved batch consistency.
Engineering Plastics | Injection‑molded Parts | Deflashing
Removes plastic flash and smooths edges to prevent scratching and improve assembly.
Visible flash and sharp edges affect feel and assembly.
Flash removed and corners smoothed; improved look and feel.
Enhance your mass finishing machine and tumbling media with our professional-grade accessories. Increase efficiency, reduce noise, and optimize your finishing process.
Get the most out of your mass finishing machine and tumbling media with our comprehensive accessory package. Our experts will help you select the right combination of accessories for your specific application needs.
Accessories designed to maximize machine efficiency and output quality
Reduce operational costs through improved efficiency and reduced waste
All accessories designed for seamless integration with your existing machine
Inovatec Machinery is committed to the highest standards of quality, safety, and reliability.
Quality Management System certified by international standards, ensuring consistent product quality.
European Conformity marking ensuring our machines meet EU safety standards.
Comprehensive testing and inspection reports from SGS.
Environmental protection standards compliance.
Since 2003, Inovatec Machinery has been at the forefront of surface finishing technology innovation.
Our machines are trusted by manufacturers worldwide and recognized at major industry exhibitions.
Regular participation in major industry exhibitions worldwide.
Strategic partnerships across major manufacturing regions.
Find answers to common questions about our products.
An Economic Vibratory Tumbler is a cost-effective mass finishing machine used to process parts in batches through vibration. It is commonly used for deburring, edge rounding, surface smoothing, cleaning, rust removal, and pre-polishing for small to medium-sized factories.
This model is ideal for small factories and workshops that need:
Stable batch finishing performance
Lower initial investment compared to high-end systems
Simple operation and quick operator training
Reliable day-to-day production for common metal and plastic parts
Typical parts include:
CNC machined parts (aluminum, stainless steel, carbon steel)
Stamping parts and sheet metal components
Die-cast parts (aluminum/zinc)
Hardware, fasteners, fittings
Small automotive / motorcycle components
Plastic parts (with proper media selection)
Depending on your parts and media selection, you can achieve:
Burr removal and edge rounding
Uniform matte/satin surface finishing
Surface smoothing before plating/powder coating/anodizing
Cleaning and rust removal
Pre-polishing (and in some cases polishing) results
Throughput depends on part size, material, burr level, media type, and cycle time.
As a general guideline for small factories:
Light deburring: higher throughput, shorter cycles
Smoothing / pre-polish: moderate throughput, medium cycles
To estimate your real throughput, we recommend sending part photos + material + burr description + daily target (kg/day) for a quick calculation.
A practical selection method for small factories:
Choose based on daily output target (kg/day) and part size + batch volume
Keep enough space for media circulation and consistent finishing
Quick selection guideline:
Small workshop / trial production: smaller bowl volume models
Stable small-batch production: mid-size bowl volume models
Higher daily output: larger bowl volume models or multiple machines
If you share your part dimensions + daily kg/day, we can recommend the most suitable model in 1–2 options.
Media selection is the key to results:
Ceramic media: strong cutting, good for deburring and smoothing metals
Plastic media: gentler cutting, good for aluminum/zinc and sensitive parts
Steel media: burnishing and brightening (typically with compound)
We can recommend media shape/size to avoid part-to-part damage and improve consistency.
Yes—most vibratory finishing processes perform better with compound:
Helps cleaning and prevents redeposition
Controls cutting rate and improves surface consistency
Reduces media/part staining and improves brightness
We can recommend compound type based on your material + target finish.
Cycle time varies widely:
Light deburring: typically shorter
Smoothing / pre-polish: medium
High finish requirement: longer
For accurate guidance, provide before-part photos, and we can suggest a realistic cycle-time range.
Proper setup prevents damage:
Correct media size prevents part lodging
Proper ratio of parts/media avoids collisions
Appropriate compound reduces surface marks
We will recommend an optimized process to protect parts and maintain stable results.
Yes. This economic model is designed for simple daily operation:
Straightforward controls
Easy loading/unloading routine
Practical maintenance steps
We also provide operating guidance and process recommendations for your parts.
Typical maintenance includes:
Regular cleaning of the bowl and discharge area
Checking fasteners, springs, and wear items
Monitoring the lining condition (PU lining longevity depends on usage)
With proper use, maintenance is simple and production-friendly.
Common upgrades for small factories include:
Variable Frequency Drive (VFD): adjust speed/amplitude for different parts
Dosing pump system: automatic compound dosing for stable finishing
Sound cover: reduce noise and improve workshop environment
Media separator / screen options: improve efficiency and reduce labor
Tell us your workflow and we will recommend the best configuration.
The ZHM economic model uses a fixed-speed direct-drive vibration motor at 1450 rpm. Amplitude is adjusted by changing the imbalance weight angle — a manual adjustment. This is reliable and sufficient for most standard deburring and polishing applications, but does not allow on-the-fly amplitude changes during a production run.
Higher-end VBS(A), VBS(B), VB(A) and VB(B) models use a variable frequency drive (VFD, Bosch Rexroth) that allows stepless amplitude adjustment from the control panel without stopping the machine. VFD control is valuable when you process different part materials in successive batches (soft aluminum vs hard steel require different amplitudes) or when you need soft start to extend motor life in continuous shift production.
Other practical differences: higher-end models use hot-poured Dow Chemicals PU lining (harder, longer-lasting) vs the ZHM’s cast PU; and higher-end models are built to higher cycle-duty ratings for continuous multi-shift production.
The ZHM is the right choice when: your parts are standard metal or plastic; your daily volume fits within a single or double shift; process requirements are consistent; and capital cost minimisation is the primary decision factor.
